Santa Clarita TV Mounting: Media Wall and Floating TV Console Installation in Santa Clarita

What counts as a media wall

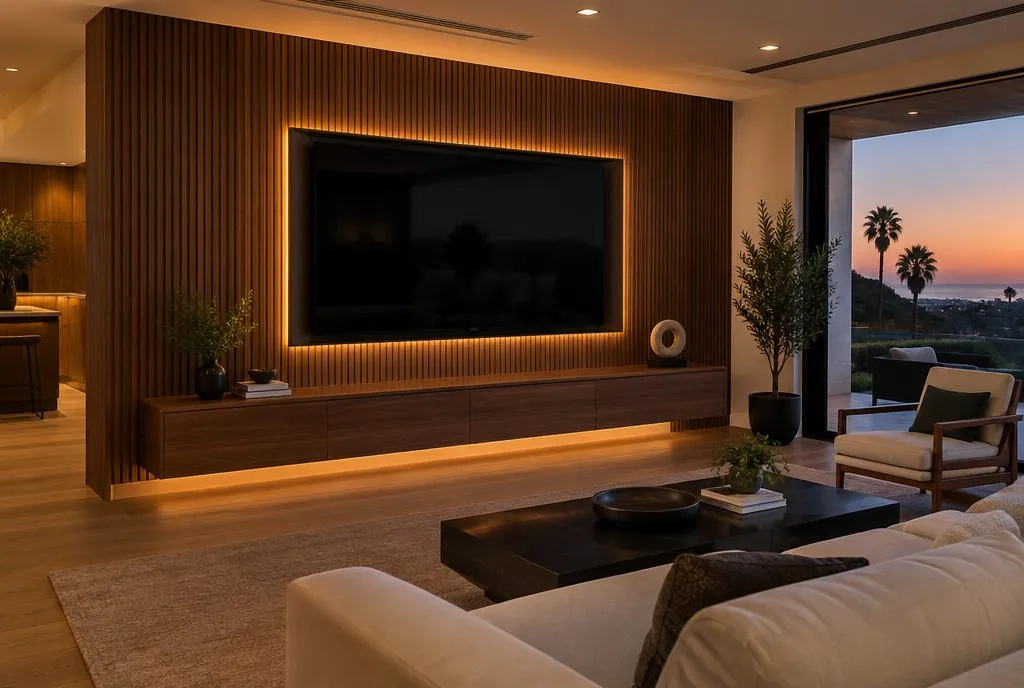

A media wall treats the TV, console, lighting and wiring as one designed surface instead of a TV hung over furniture. Typical SCV versions: a 75–85 inch TV flush over a floating wood or lacquer console; a slat-wood or shiplap feature wall with the TV centered; a drywall recess that lets the TV sit nearly flush; or a fireplace-plus-TV wall with built-in cabinets either side. The installer handles the TV, console and lighting and coordinates with the homeowner's carpenter or drywall contractor on recesses and feature cladding.

Floating consoles done safely

Hidden French cleat or steel brackets into studs

A console holding a receiver, console and soundbar can weigh 150+ lbs loaded. The cleat or bracket is lagged into at least two studs and leveled to the TV above.

Cable pass-through

Grommets in the console back line up with an in-wall plate so the TV's cables drop straight into the cabinet, invisible from the room.

Ventilation

Receivers and game consoles need airflow; a gap stays behind the console, or a quiet fan goes in where the cabinet is closed.

Lighting and finishing touches

Dimmable LED bias lighting (6500K for accurate color, or warm white to match the room) on the back of the TV or the recess, powered from the same hidden outlet. Flush wall plates color-matched. Equipment labeled. Remotes consolidated with a Harmony-style or Sofabaton universal.

Working with your contractor

If the wall is being framed or clad, the installer gives the carpenter blocking locations, outlet positions and conduit routes before drywall goes up so the finished wall has backing exactly where the TV and console will hang.
